Manual swing and sliding gate installation in Vacaville, CA. Serving Vacaville and all of Solano County.
Vacaville Custom Metal & Electric Gates builds manual swing or sliding gate installation in Vacaville, CA for side yards, RV pads, driveways and service access, and a manual gate is not a lesser product. It is the right answer for a lot of openings. If a gate gets used twice a day and there is no power within a hundred feet, an operator adds cost, adds a failure point, and solves a problem you do not have.
What a manual gate cannot get away with is being built badly. A powered gate hides a slightly binding hinge because the motor muscles through it. A manual gate tells you about it every single time you touch it. We build these square, hang them on hardware rated above the finished leaf weight, and detail them so an operator can be added years later without recutting anything. More on our approach across every gate type is on the Vacaville custom gate homepage.
Manual Swing & Sliding Gate Installation is one of our gate installation services, offered across Vacaville and Solano County.
Every manual gate installation covers:
A manual gate is usually the better call when:
The single most useful thing we do on a manual gate is shoot the grade across the swing path. A driveway that rises even a few inches across the arc will make a swing gate scrape, and that is the point where the job becomes a slide gate instead.
Swing gates want level ground and clear arc room. Slide gates want side room along the fence line but tolerate slope. Cantilever slide gates need no ground track at all, which matters where dust or debris would foul one.
Frames are cut, fitted and fully welded in the shop. Field-welded gates are the ones that come back sagging, because nothing on a job site is as flat as a fabrication table.

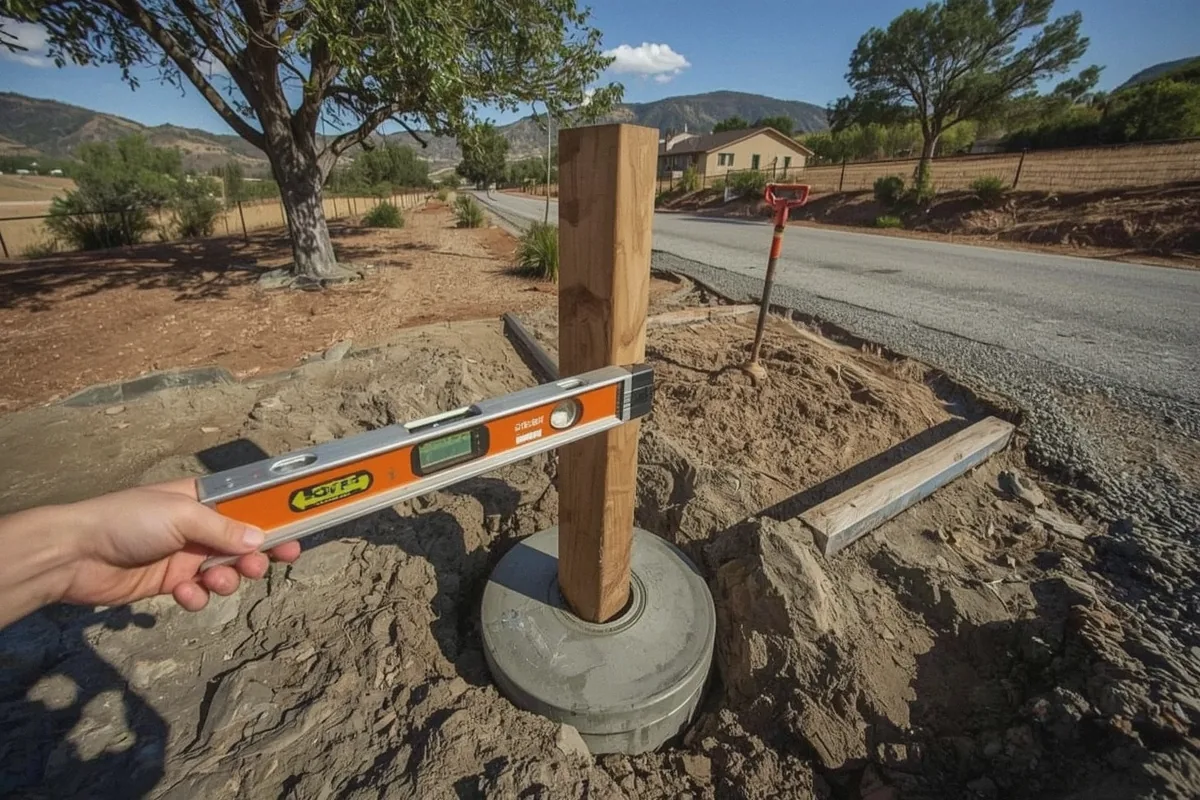

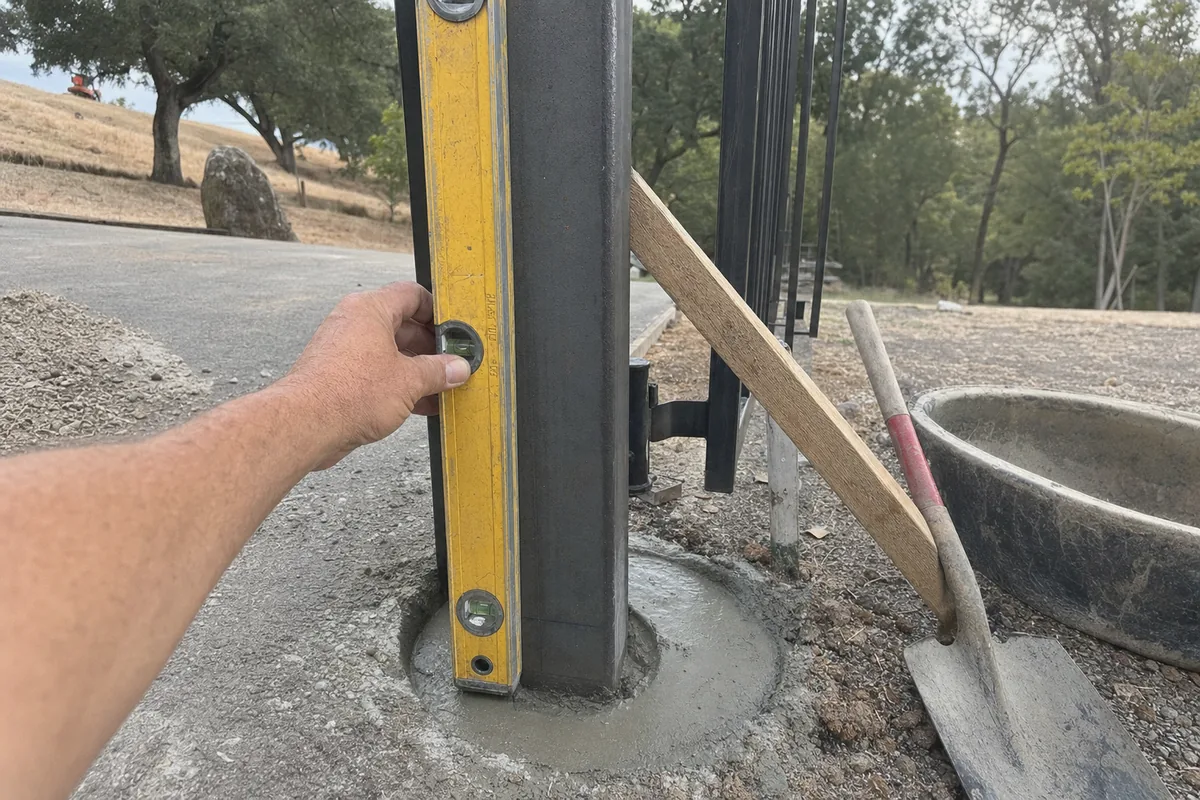

Footings are sized to leaf weight and wind load. A hinge post carrying a heavy leaf on an undersized footing will lean within a season, and once the post leans the gate never latches right again.
We hang the gate, set the rollers or the arc, fit the drop rod and latch, and adjust until it moves with one hand and latches without being lifted.
Coating is inspected, hardware is lubricated, and we show you the adjustment points so small settling can be corrected without a service call.
Swing or slide is a ground question before it is a style question. This is how they compare:
| Gate type | Needs | Handles slope | Best for |
|---|---|---|---|
| Single swing | Clear arc room equal to the opening width | Poorly, unless the ground is near level | Openings up to roughly 16 feet with flat ground and room to swing |
| Bi-parting swing pair | Half the arc room of a single leaf, on each side | Poorly, same limitation | Wider openings where a single leaf would be too heavy and too long |
| Rolling slide gate | Side room along the fence, plus a clean ground track | Well | Sloped or tight driveways where nothing can arc |
| Cantilever slide gate | More side room than a roller gate, but no ground track | Very well | Dusty, agricultural or debris-prone sites in Dixon and Winters |
| Side yard pedestrian gate | A few feet of clearance only | Reasonably | Narrow lots in Suisun City Old Town and the older Vallejo and Fairfield grids |

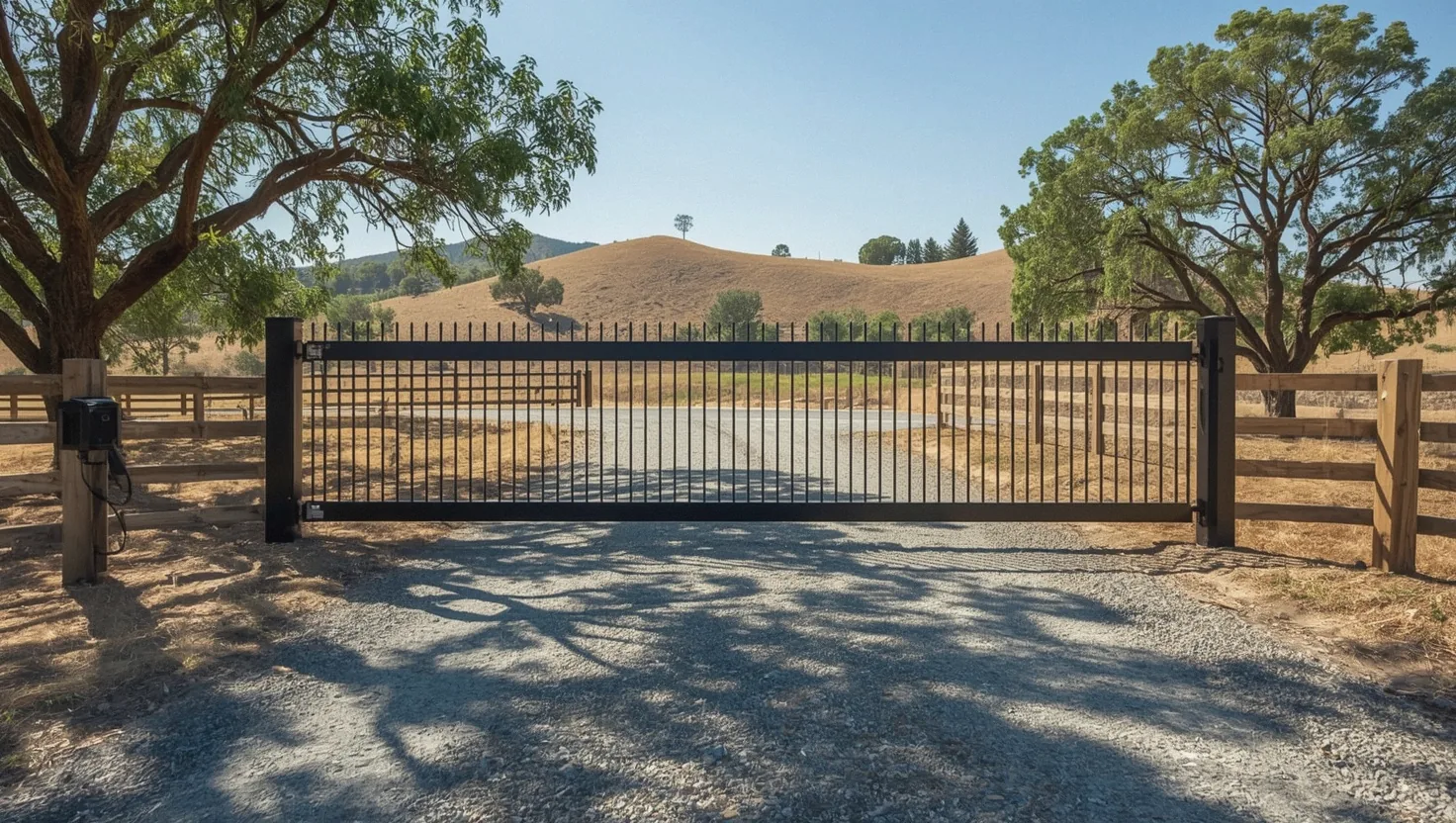

Cantilever slide gates are the quiet workhorse of this county. They carry their weight on rollers mounted to the posts rather than on a track in the ground, so field dust in Dixon, gravel in Winters and standing winter water anywhere cannot jam them. They need more side room, which is the trade.
Manual gates are the most affordable gate we build, and these are the factors that move the number:
A lot of Vacaville lots have a side yard that falls away from the house toward the rear fence for drainage, which is exactly the condition a swing gate cannot tolerate. Swing the leaf downhill and it hits the ground partway through the arc; swing it uphill and it needs a gap under it big enough to defeat the point of the gate. This is why we end up specifying so many rolling and cantilever slide gates on side yards and RV pads here. It also explains why we shoot the grade on every visit rather than quoting from a photograph.
Most gate projects touch more than one of these. If you are not sure which applies, call us and we will tell you plainly, including when you need less than you thought.
You can also see every gate service we offer in Vacaville, read how we work, or get in touch.
Every frame is cut, fitted and fully welded on a fabrication table in our shop before it comes to your property. Field-welded gates are the ones that come back sagging within a couple of seasons, because a driveway is not a flat reference surface. Square at the table is what lets a manual gate still latch by hand, without lifting, five years later.
Hinges, rollers and track hardware get specified above the finished weight of the gate, including the infill and any ornamental work. Hardware chosen right at the rating is hardware working at 100 percent of capacity on every cycle, and it is the reason latch-side sag is the most common manual gate failure we get called to fix.
A few inches of fall across an opening is the difference between a swing gate that works and one that scrapes partway through its arc. We put a level on the driveway and measure the fall across the full travel path on every visit, because that one measurement decides swing against slide and it cannot be taken from a photograph.
They measured the driveway and told me a swing gate would scrape before I ever asked. Ended up with a cantilever slide instead and it has not caught once. Whole thing was welded in their shop and hung in a day.Dana R.Vacaville · Driveway gate + automation
Our old yard gate had a residential opener on it and it burned out twice in a year. They replaced it with a proper continuous-duty unit and explained exactly why the first one kept failing. Two seasons, no issues.Marcus T.Fairfield · Commercial cantilever gate
We are in the downtown historic district so the design had to be approved. They drew it to the district's standard and it cleared first time. Galvanised it before the powder coat because of the salt air.Priya S.Benicia · Ornamental iron entry gate
Conditions change city to city across Solano County, from strait salt air to dry farmland. Each page covers what is different where you are, or you can explore our service areas in full.
Yes, if it was built for it. We detail manual gates to be automation-ready as standard: the frame is specified for the extra stress an operator puts on it, hinge and roller hardware is rated for powered cycling, and if you tell us it is a future phase we sleeve a conduit path while the trench is already open. See our automatic electric gate installation page.
Let the ground decide. Swing gates need level ground and clear arc room equal to the opening width. If your driveway slopes across the opening, or a parked car or planter sits in the arc, a slide gate is the answer. We shoot the grade on site rather than guessing from a photo, because a couple of inches of fall decides this.
A single swing leaf is sensible to roughly 16 feet, after which the weight at the far end makes it hard to move by hand and hard on the hinge post. Beyond that we go to a bi-parting pair, or to a slide gate, which has no practical width limit for the openings we see in this county.
Yes, provided the infill spacing is specified for it. We set picket spacing to the animal, not to a standard: a gate that contains horses will not contain a determined small dog. On ranch and orchard gates in Dixon and Winters we also detail the bottom rail so nothing can push under it.
